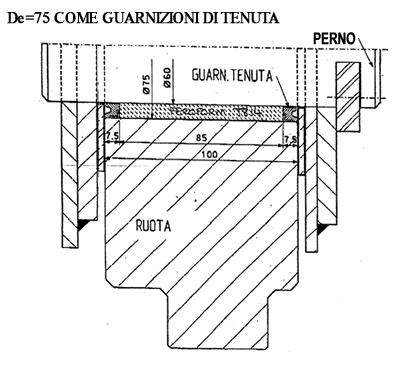

Fixed Wheel Roller Gates
Wheel Bushings

Installation:          Ala Dam, Adige River, Italy.
Date of fitting:     1996
Contractor:           Cesari Giovanni Srl
Scope:                    Revision of 16 sluice gates, 6 rollers per gate.
Bearing Size:        75mm ODx60mm IDx85mmL
Load:                      6,000 kg
Speed:                   1 rpm
Benefits:                Water lubricated.
               Low friction and superbabrasion resistance.
               Long life and maintenance free usage.

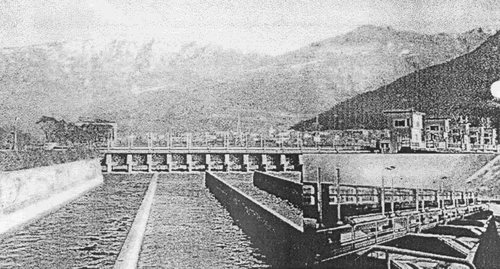

Intake on Adige River-Ala Dam

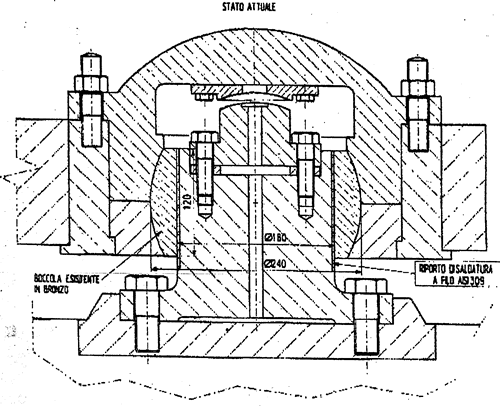

Radial or Tainter Gates
Trunnion Bearings

Installation:          Bolzano Region, Italy.
Date of fitting:     1998
Contractor:           Cesari Giovanni Srl
Scope:                    Refreshment of 2 Radial or Sector Gates.
Bearing Size:        140mm ODx120mm IDx210mm L
Load:                      45,000 kg
Speed:                   5 rpm
Benefits:                Water lubricated.
               Low friction and superb abrasion resistance.
               Long life and maintenance free usage.

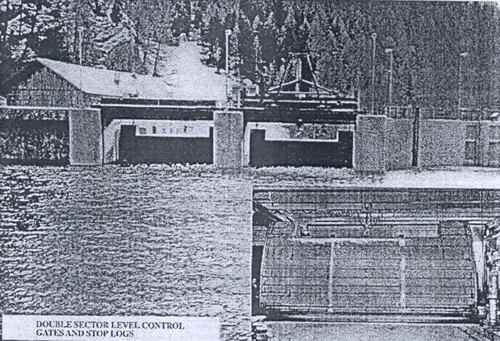

Bolzano Region Double Sector Level Control
